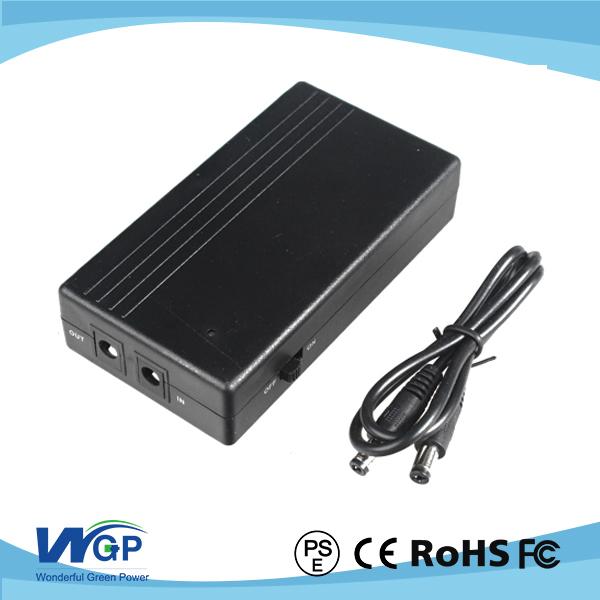

ups backup battery mini ups 5v 2a for ip camera use
Product Features
DC 5V Mini UPS Tecnical Features :
Mini UPS uninterruptible power supply is a standby energy storage power supply. Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS, Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| DC 5V Mini UPS Basic Information |
| Model |
UPS502A |
| Capacity |
16.28wh/4400mAh |
| Battery Type |
18650 lithium ion battery |
| Input Voltage |
5V ±5% |
| Input current |
350mA+loading current |
| Output Voltage |
12V±10% |
| Output current |
≤2000mA |
| Discharging transfer efficiency |
≥75% |
| Over-discharged protection(battery) |
2.5V( Over-discharged release 3V) |
| Over-charged protection(battery) |
4.35V( Over-charged release 8.25V) |
| With load current(battery) |
≥2000mA |
| Working temperature |
-20°C~85°C |
| Weight |
≤153g |
| Size |
111x60x26mm |
| Warranty |
1 year |
| Certification |
CE,ROHS,FCC,PSE |
Buying Guides
Product Overviews
Packaging & Shipping
| Packing Method |
| 1. Well protection neutral box packing |
| 2. 44PCS/CTN |
| 3. CTN Size:42*23*24CM |
| 4. G.W 11kg |
| Packing Include |
| UPS Battery |
1PC |
| DC Cable |
1PC |
| User Manual |
1PCS |
| Delivery Time |
| Sample |
2-3 working days |
| Bulk Order |
15-20 working days |
| Shipping Method |
| DHL,UPS,FedEX,EMS,HongKong Post,Swiss Post etc.... |
Company Information
FAQ
Q:What's the type of ups?
A:It's a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What's the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What's the device you plan to use?
2.What's the working voltage and current?
3.What's your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other models?
A:Yes,we have variety models with defferent capacities,please contact with me for more details.
